Cantilever Structural Racking

Cantilever

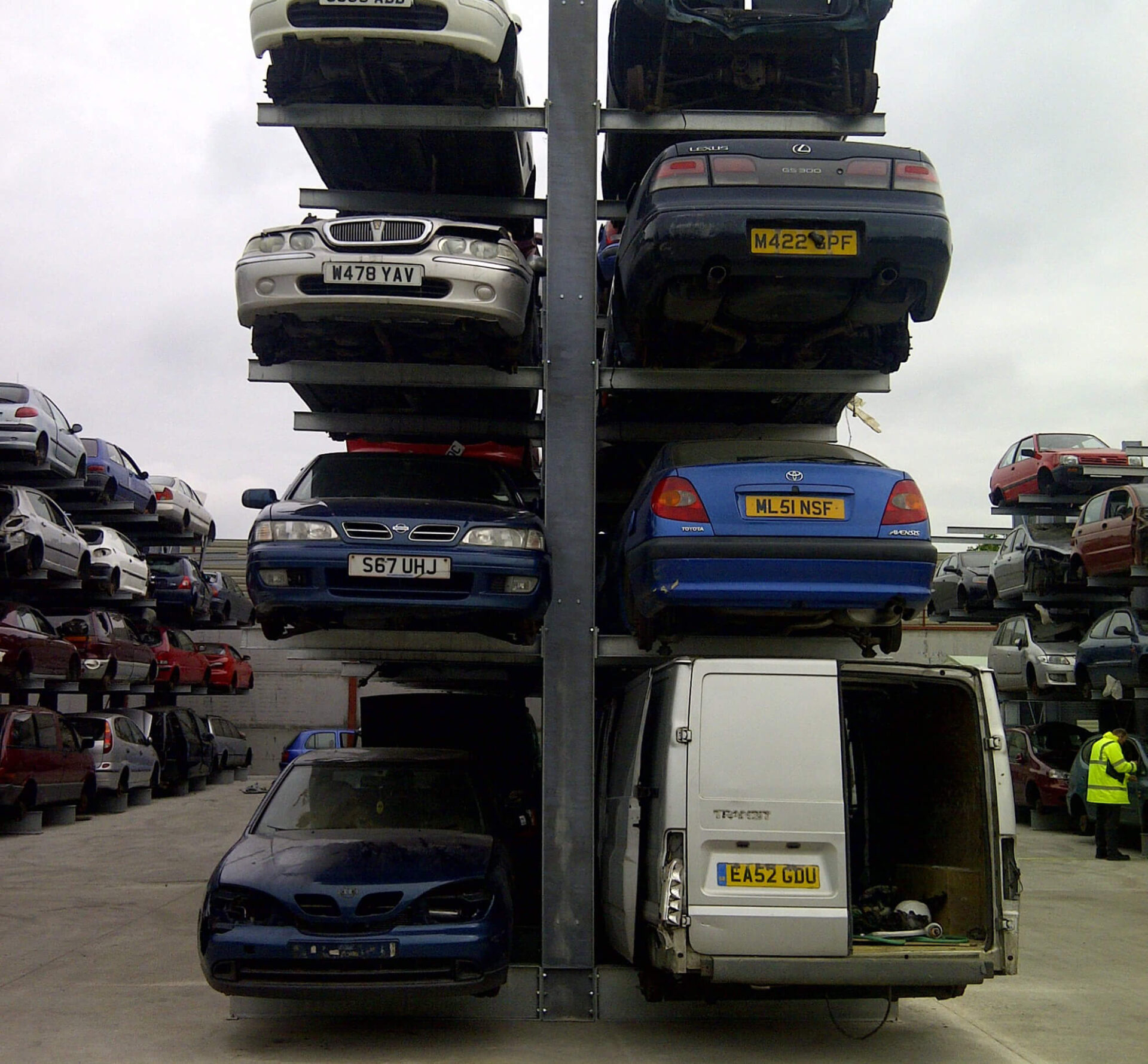

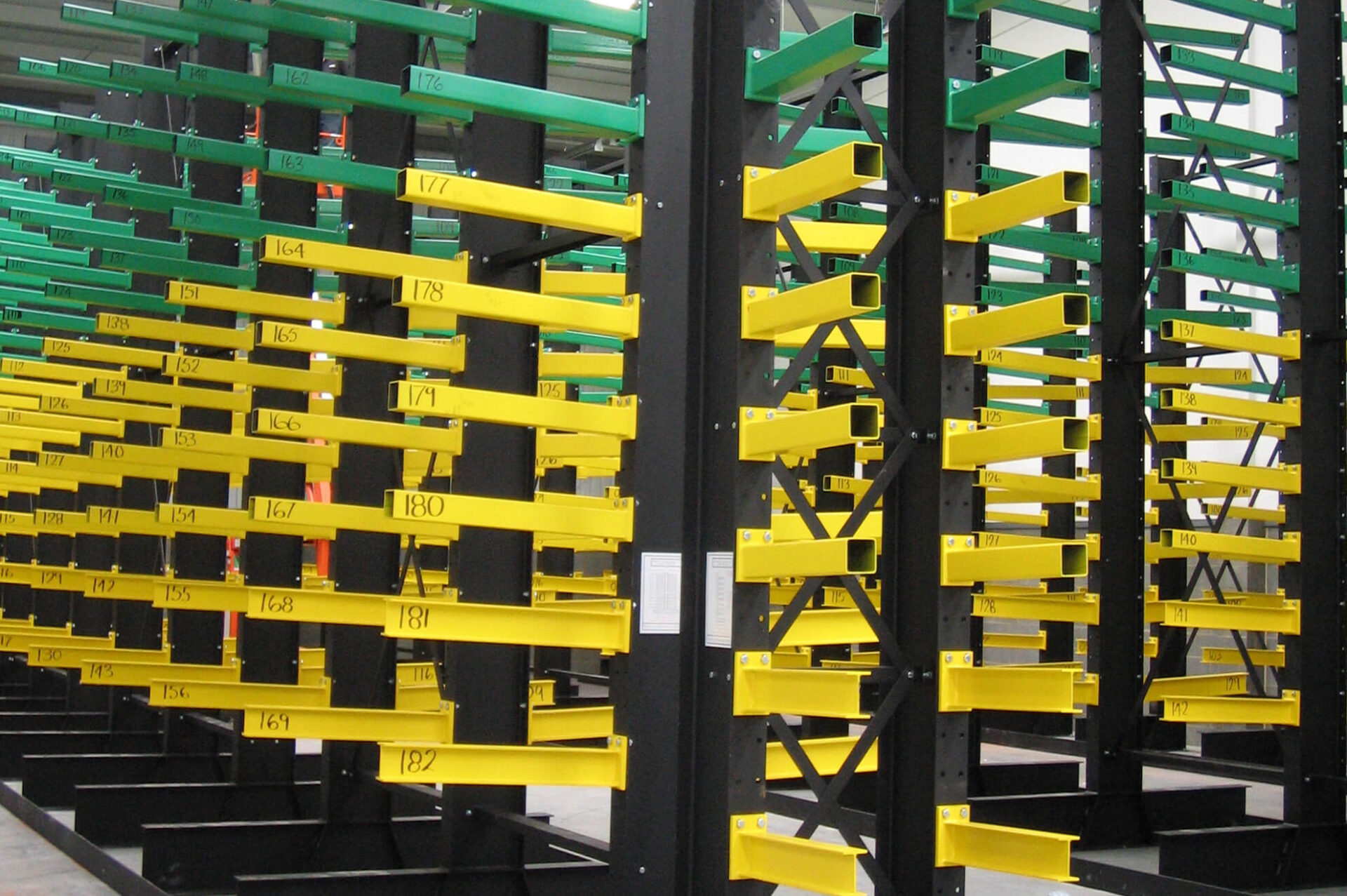

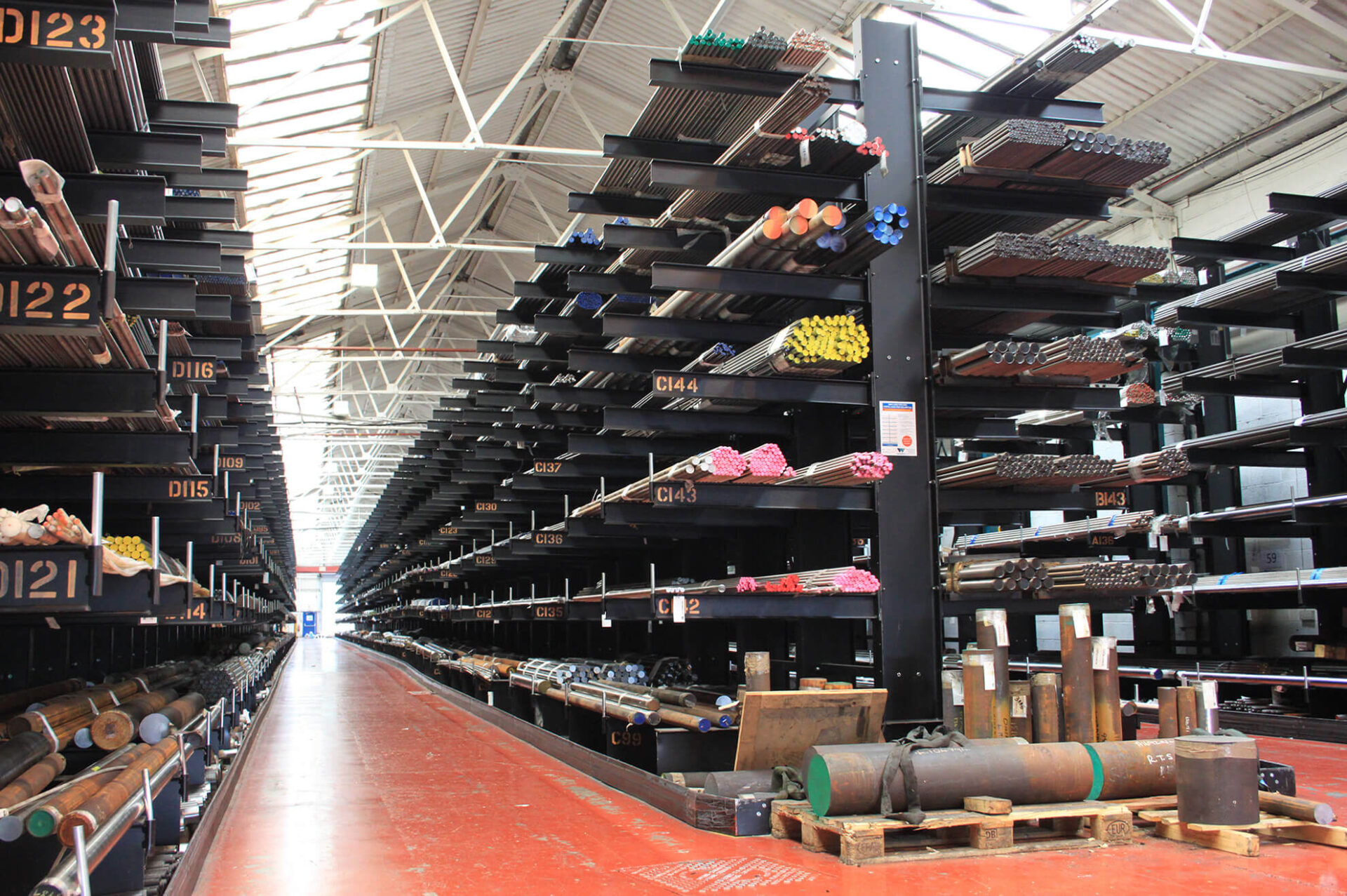

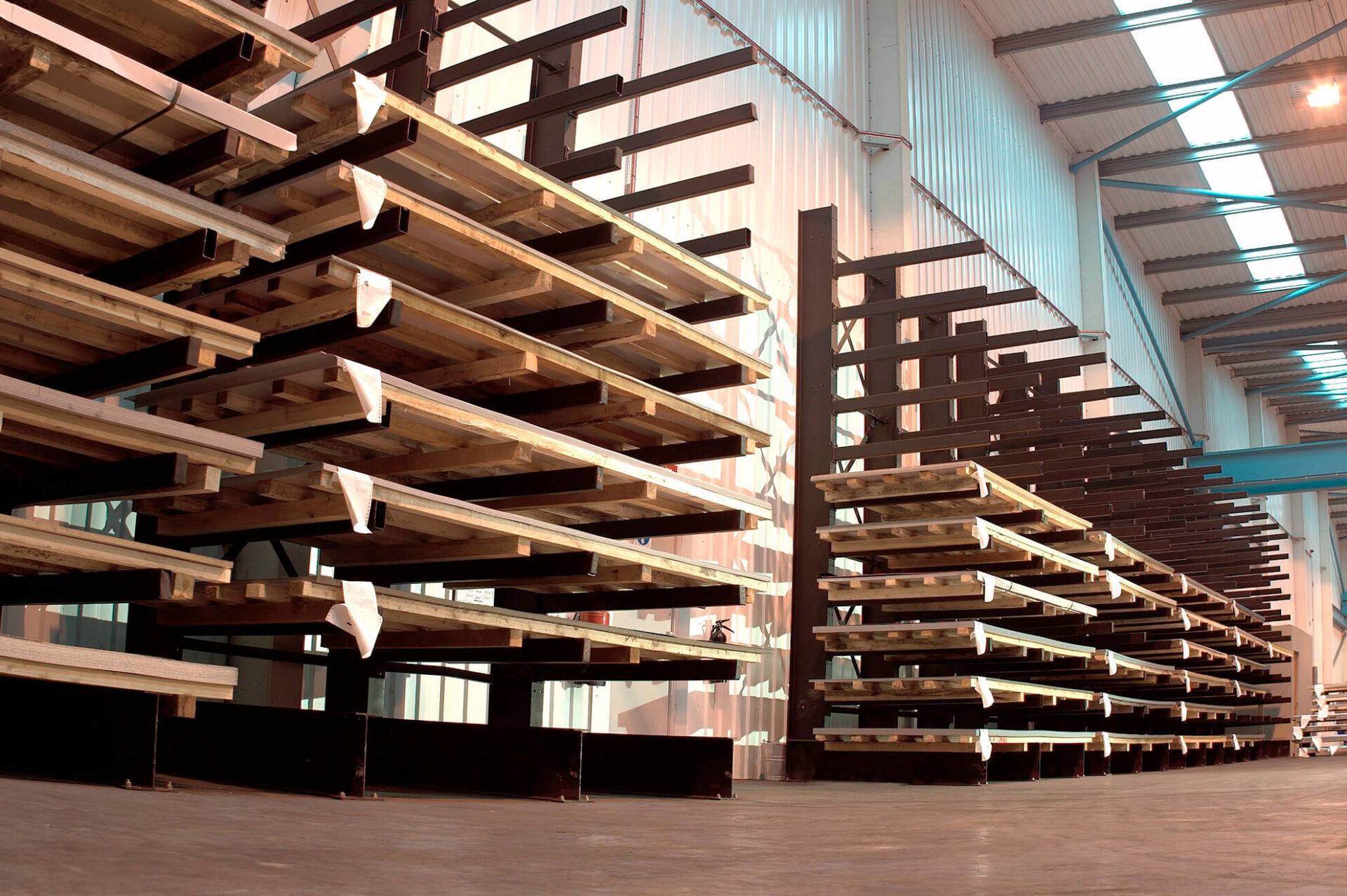

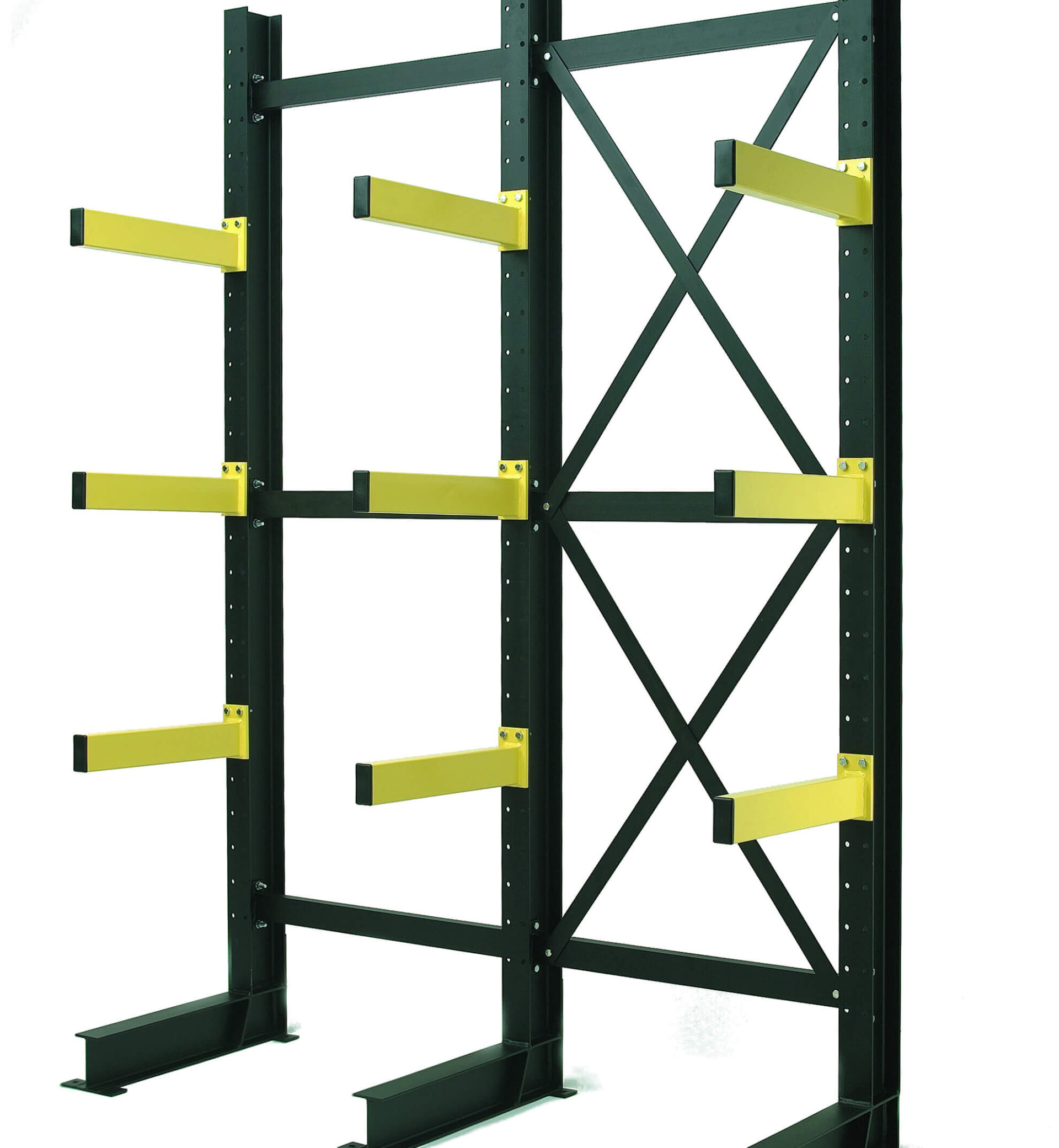

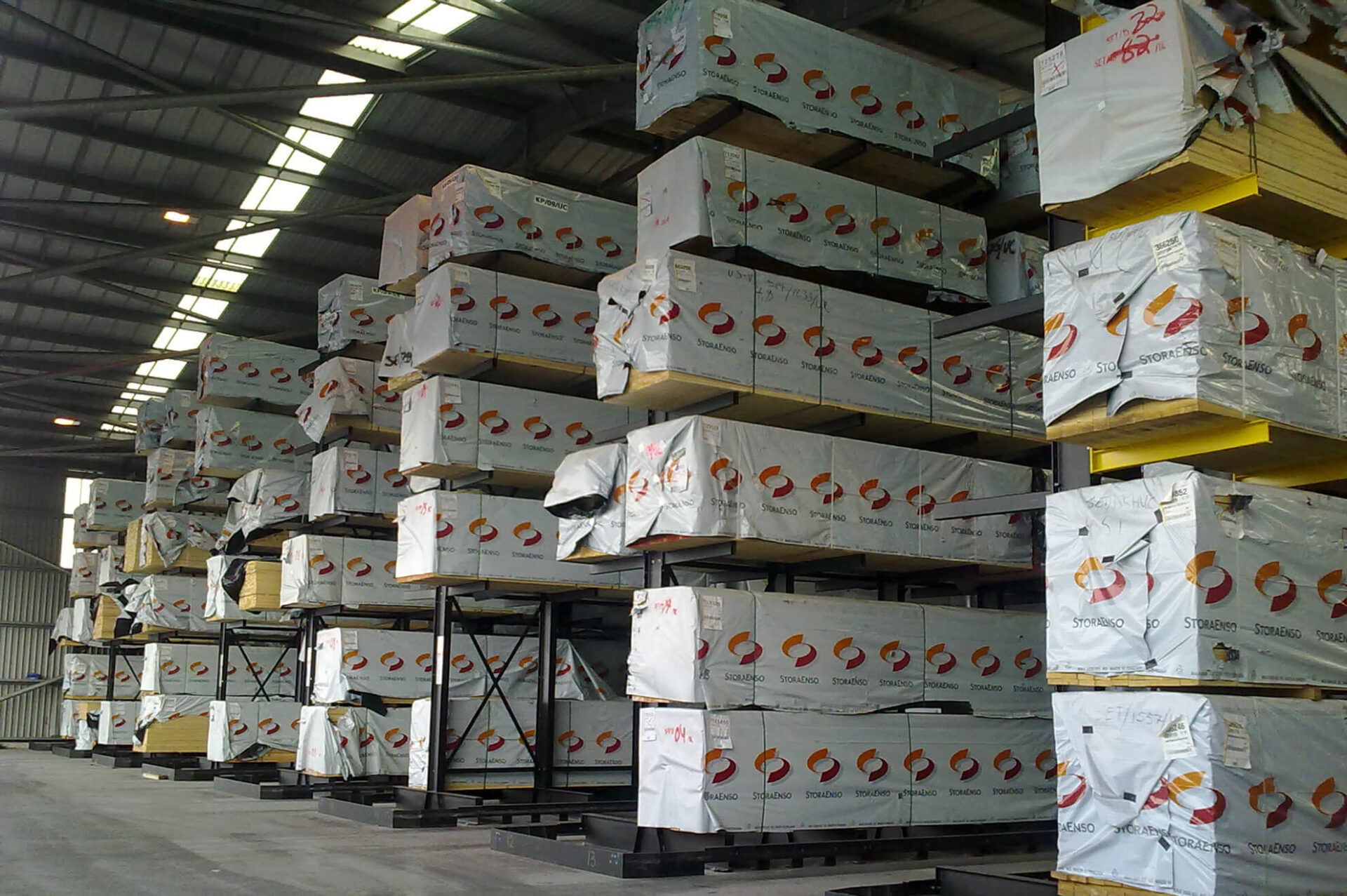

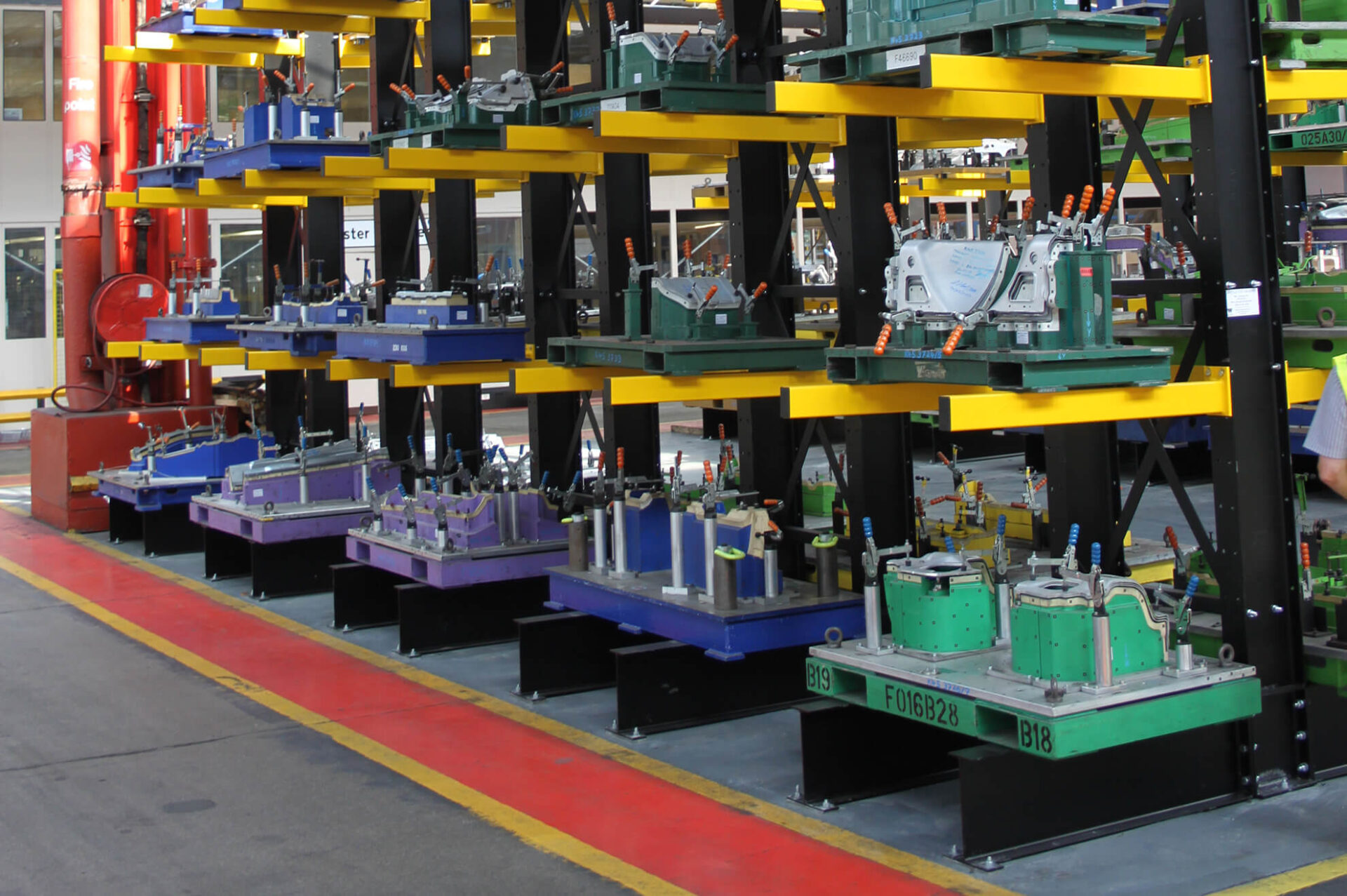

Cantilever racking provides a safe and economical solution for storing long and heavy-duty items. Its open-front design accommodates products of varying lengths, making it ideal for diverse storage needs. Manufactured in the UK, our Cantilever Rack System features uprights and bases made from hot-rolled structural steel, ensuring durability in even the most demanding industrial settings.

FEATURES:
  • Rack heights of up to 10 meters, supporting loads of up to 30 tonnes.
  • Vertically adjustable arms with a standard pitch of 150mm (custom pitches available upon request).
  • Options for painted finishes in any color or hot-dipped galvanizing for outdoor use.
  • Arm lengths and load capacities tailored to your specific requirements.
  • Various arm profiles to suit different applications.
DESIGN:
  • All components comply with current British standards and CE marking requirements.
  • A minimum safety factor of 2.5 based on ultimate tensile strength.
  • Arm deflection is limited to 1/180th of the length.
  • Maximum weld stress is capped at 115N/mm².
  • Upright deflection is restricted to either 1/120th of the height or 50mm, whichever is smaller.
OPTIONS:
  • Available in single or double-sided configurations.

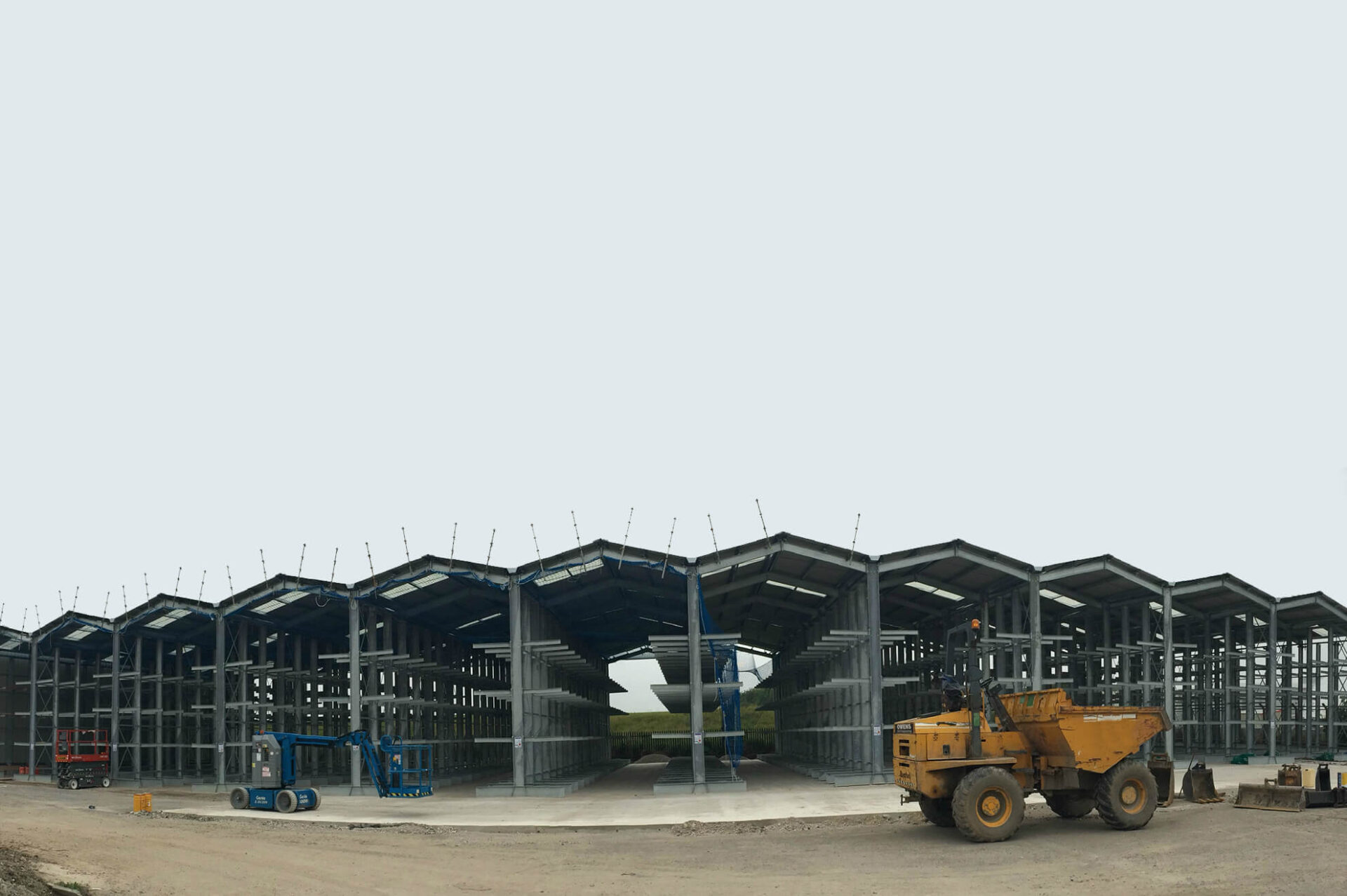

  • Canopies for outdoor storage.
  • Removable retaining pins or welded end stops for enhanced safety.
  • Rack-clad buildings for improved aesthetics.
  • Arm end ties for added lateral support.
  • Plastic arm protection to prevent product damage or corrosion.
  • Tyre guards, steel or timber decking, and head guards for added functionality.
  • Steel or timber decks
  • Head guards

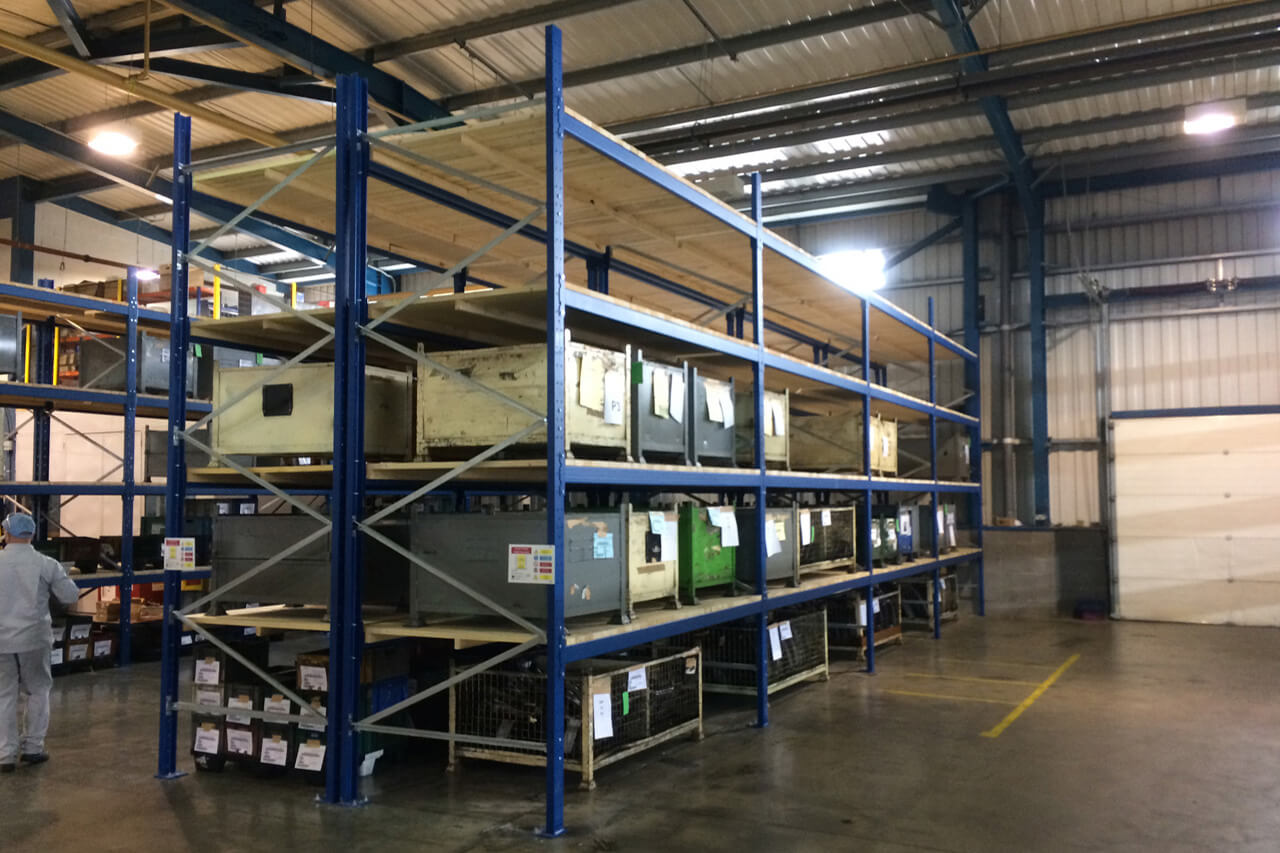

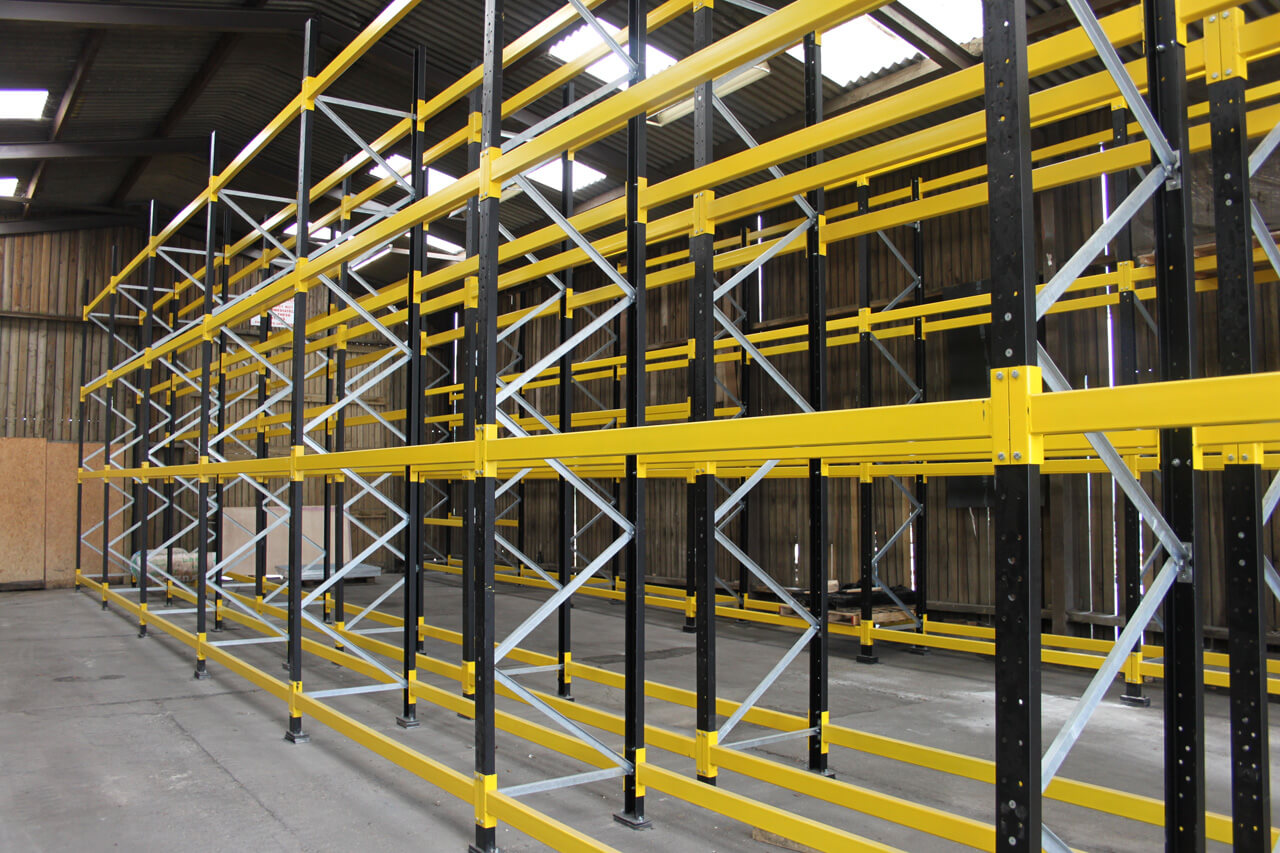

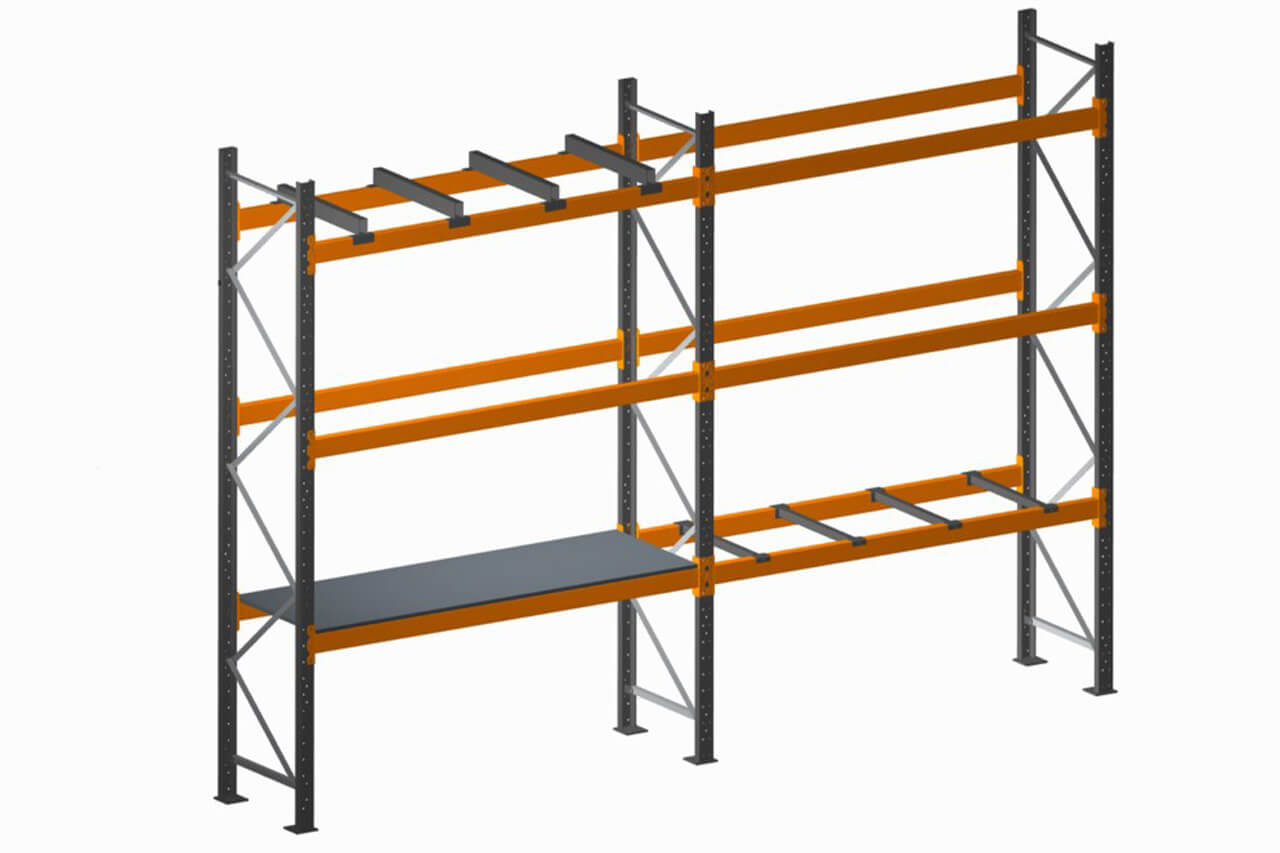

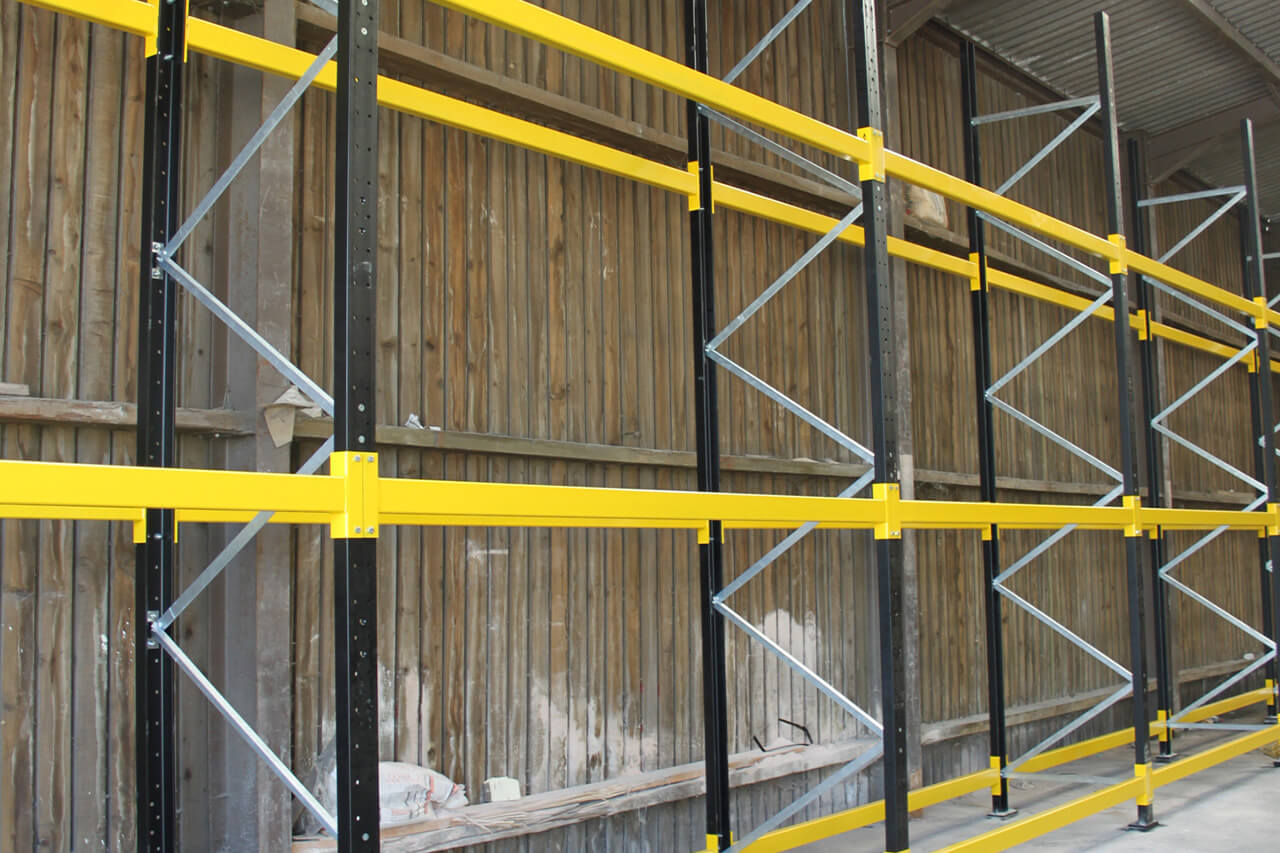

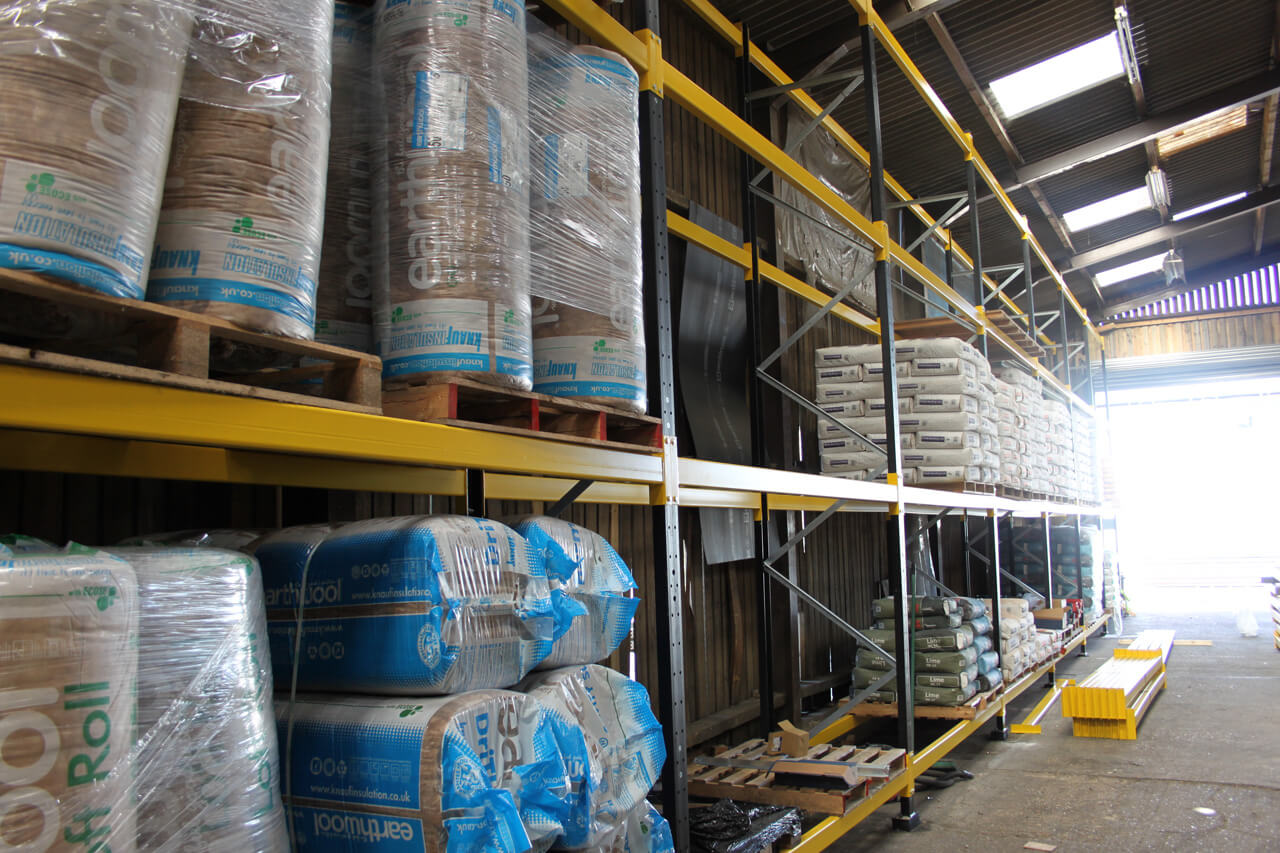

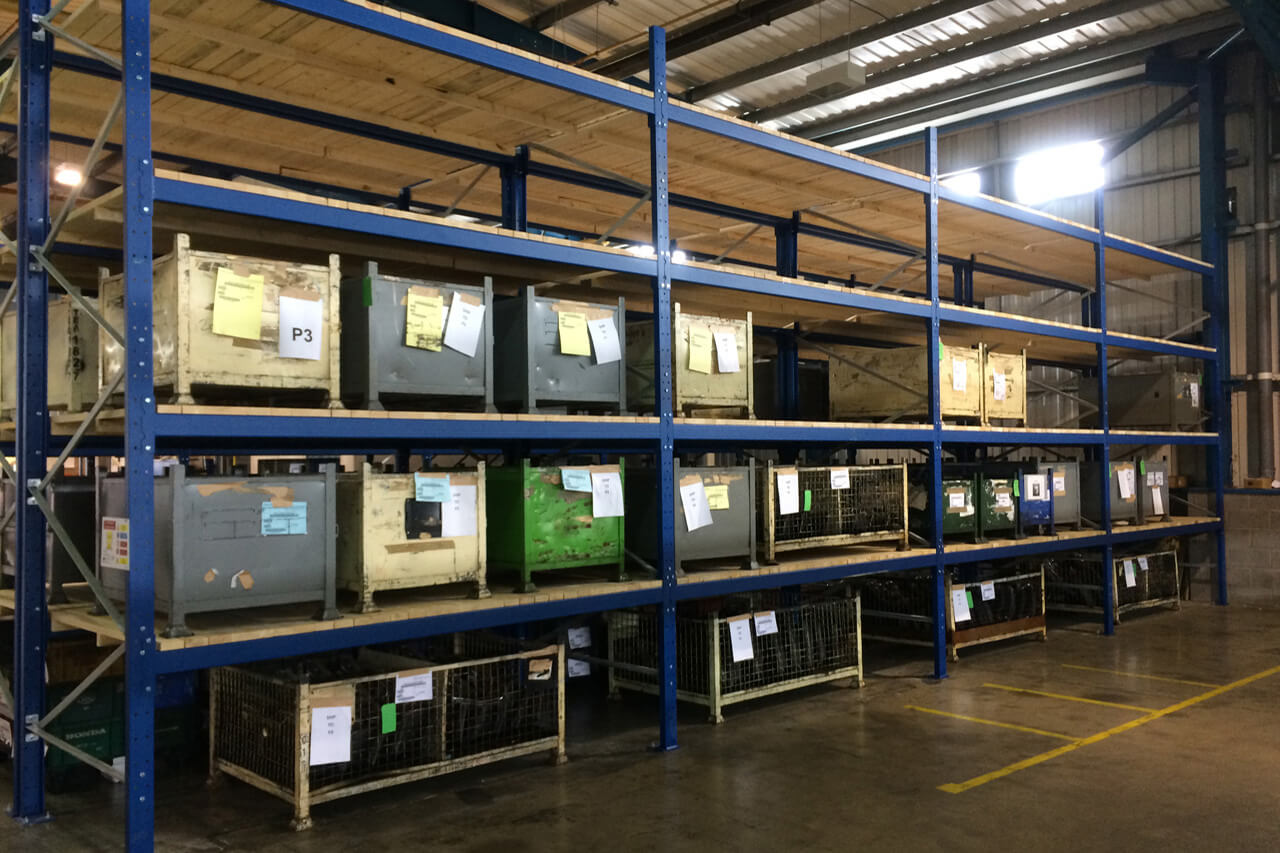

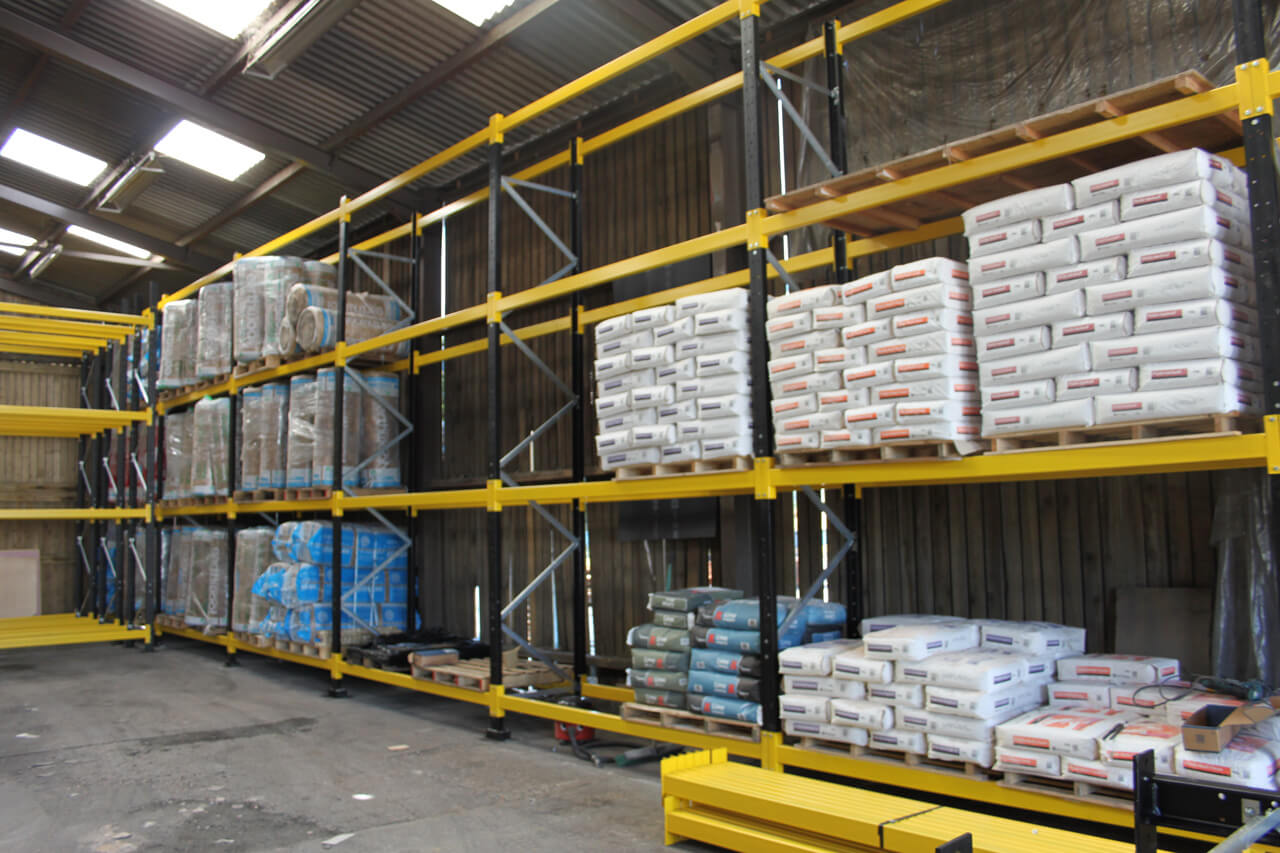

Structural Pallet Racking

Constructed from hot-rolled structural steel sections, Structural Pallet Racking offers a robust alternative to standard pallet racking. This type of racking is more resistant to damage from forklifts and is particularly durable for outdoor applications.

Based on the dimensions and weight of your products, we can recommend whether Structural Pallet Racking or Heavy Duty Racking better meets your storage needs. Manufactured in the UK, our racks comply with current British and CE marking standards and are tailored to fit each customer’s specific requirements.

FEATURES:
  • Rack heights available up to 6 metres
  • Maximum frame load capacity of 16,000 kg
  • Maximum uniform distributed load (UDL) of 4,000 kg per beam level
  • Clear entry width of up to 3.9 metres
  • Rack depth of up to 1.1 metres
  • Vertically adjustable beams with a standard pitch of 100 mm
  • Options for custom colours or galvanized finishes for outdoor use
TYPICAL APPLICATIONS:
  • Warehouses
  • Timber yards
  • Builder’s Merchants yards
  • Manufacturing facilities
  • Industrial freezers and chillers
OPTIONS:
  • Roof and cladding for outdoor storage
  • Steel or timber decking
  • Pallet support bars
  • Fitted or adjustable fork entry bars
  • Chocks for storing drums or coils
  • Back stops
  • Guide Rail Systems available for additional protection from forklift damage



IDEAL FOR STORING:
  • Boxed goods
  • Tooling
  • Palletised items
  • Lightweight timber

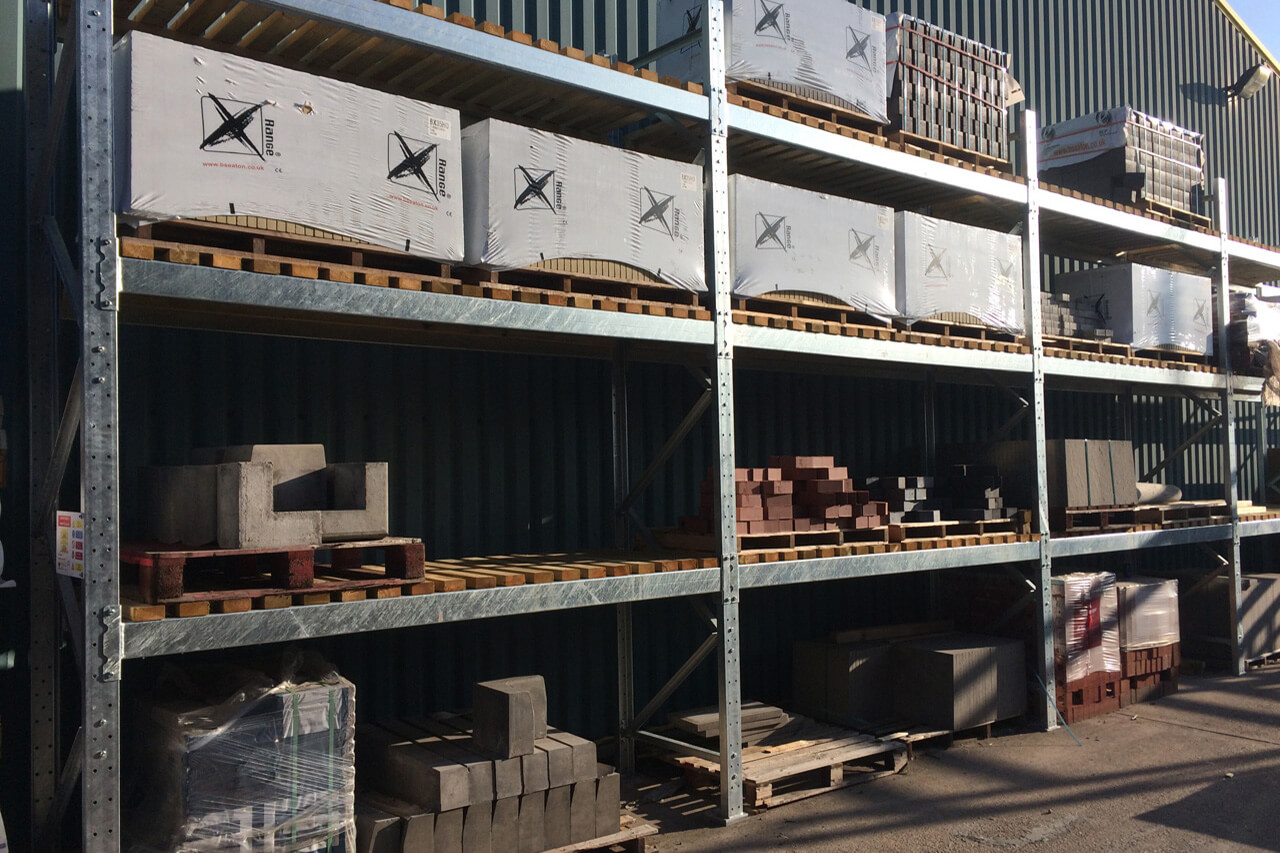

When warehouse space is at a premium, our Structural Pallet Racks can be galvanized and equipped with roofs and cladding for outdoor installation. This approach offers a cost-effective solution for external storage while safeguarding your goods from environmental elements. For enhanced security, you can opt for doors to create a more secure storage area, or choose budget-friendly PVC curtains for easy access.

To further protect your racking and inventory from damage caused by materials handling equipment, we provide a range of safety products. Options include durable steel safety barriers, column protectors, and bollards, all designed to minimize the risk of impact and ensure the longevity of your storage solutions. By investing in these safety measures, you can maintain a safer and more efficient warehouse environment.
